FORMULATE FUNNEL 01 TENSION FABRIC STRUCTURE
$12,396.00

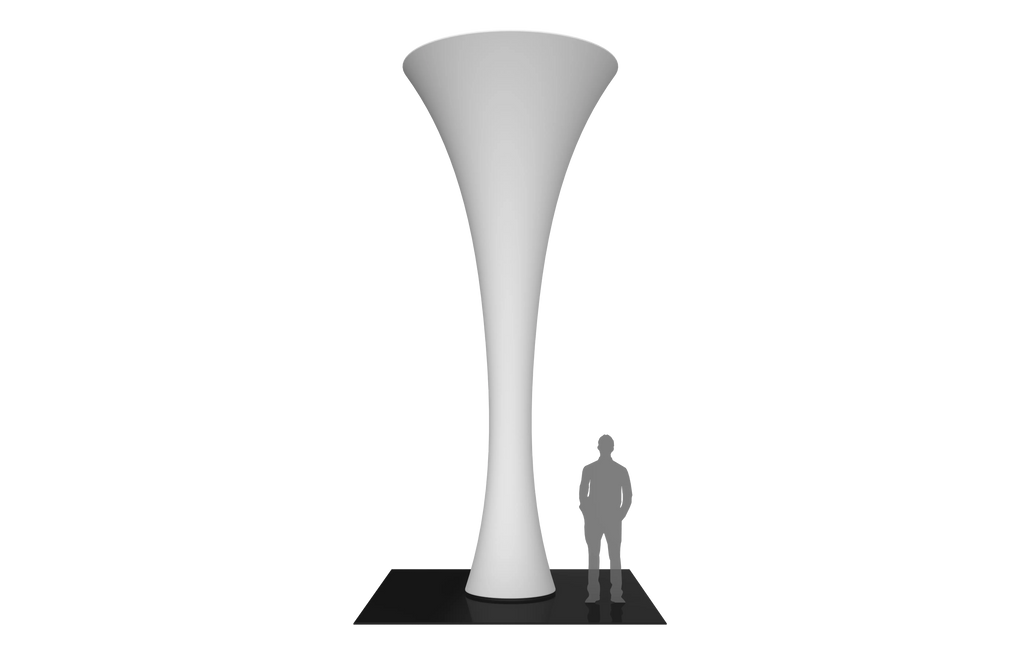

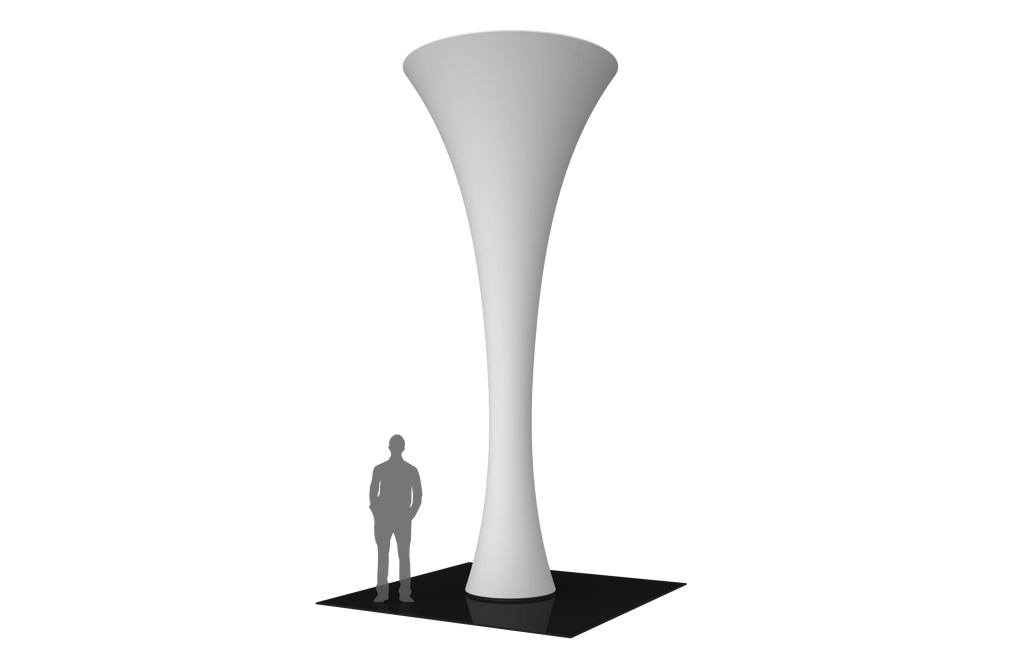

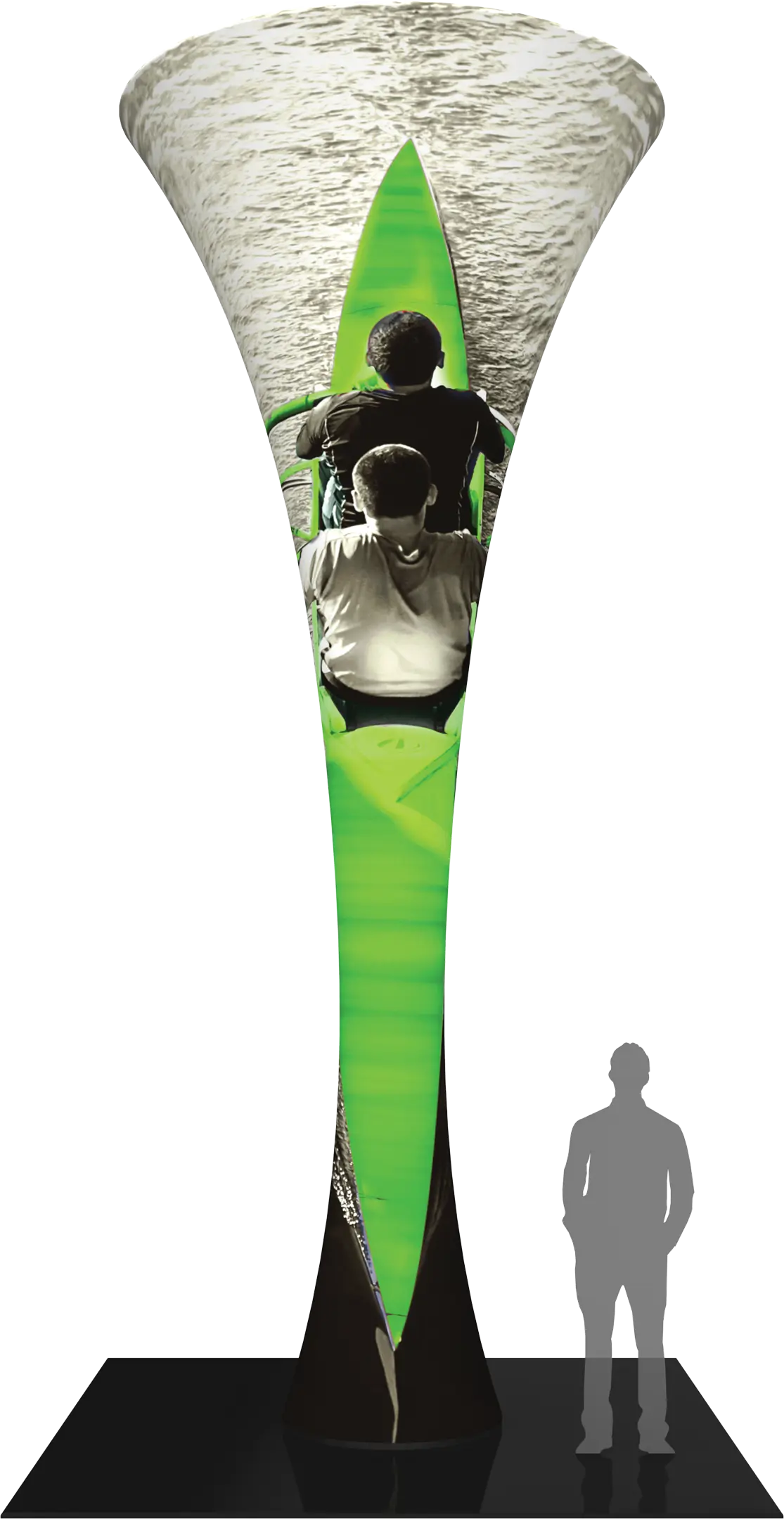

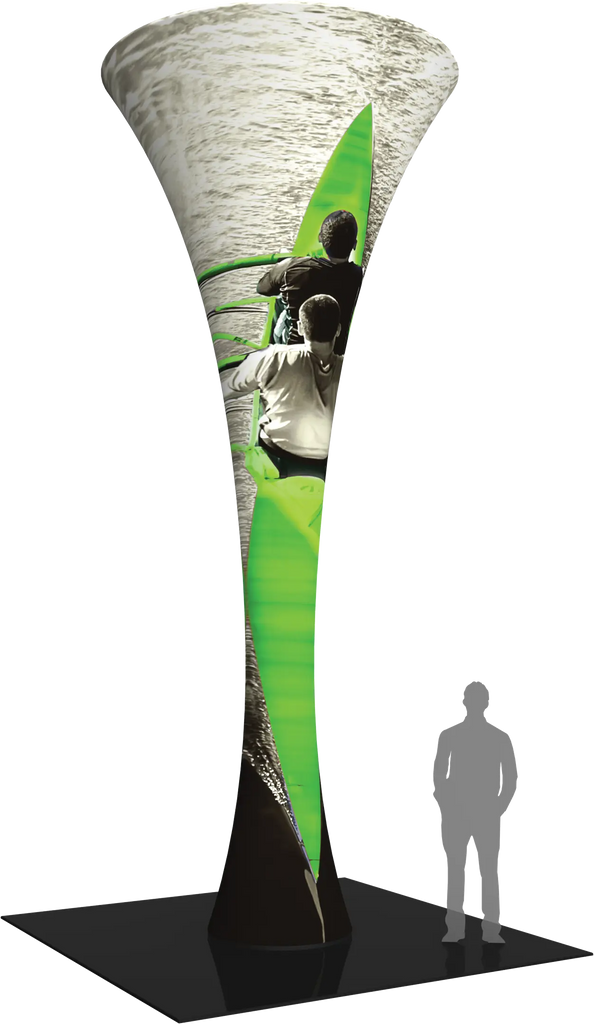

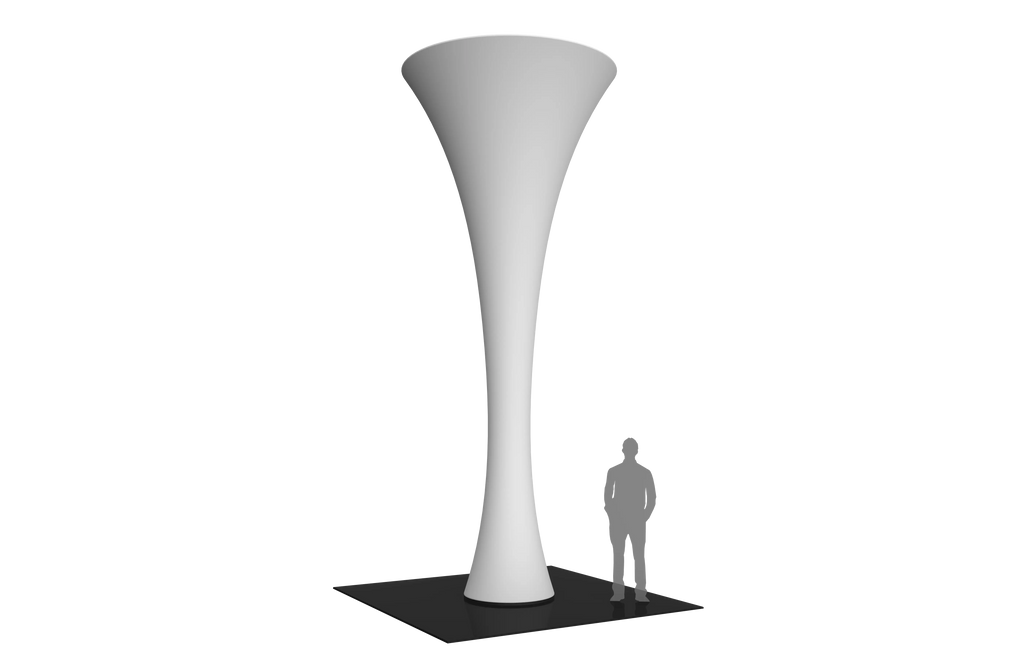

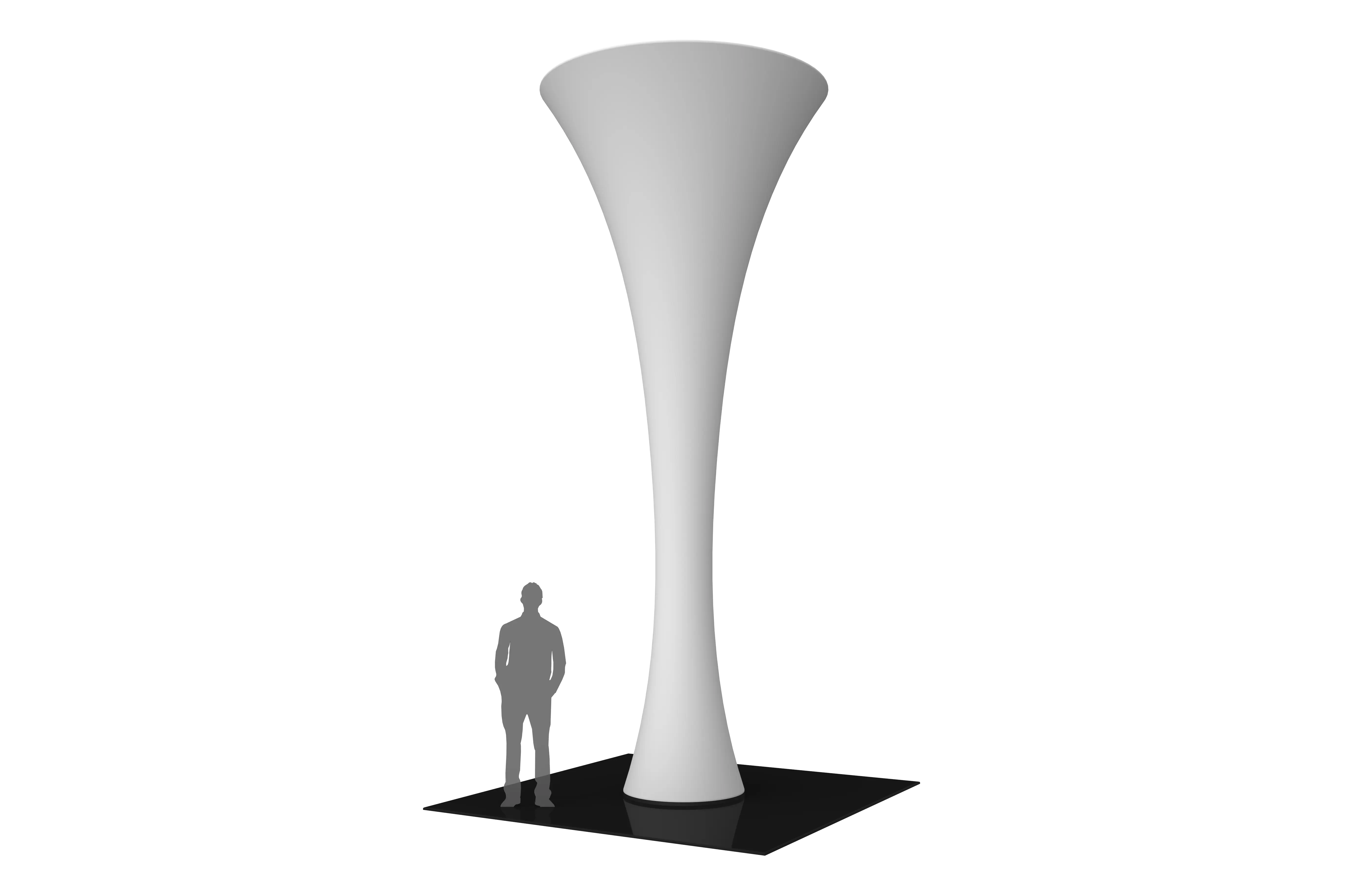

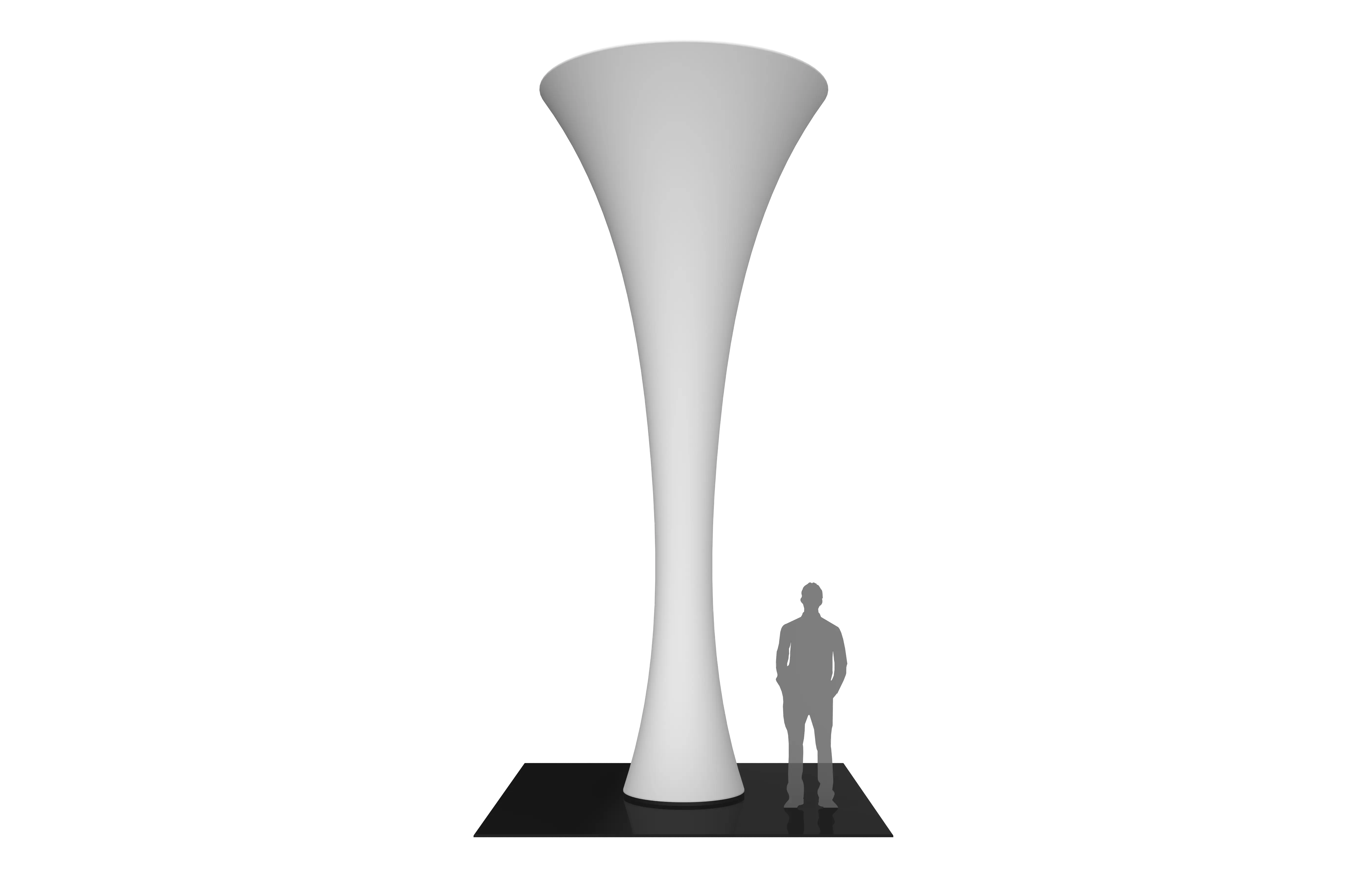

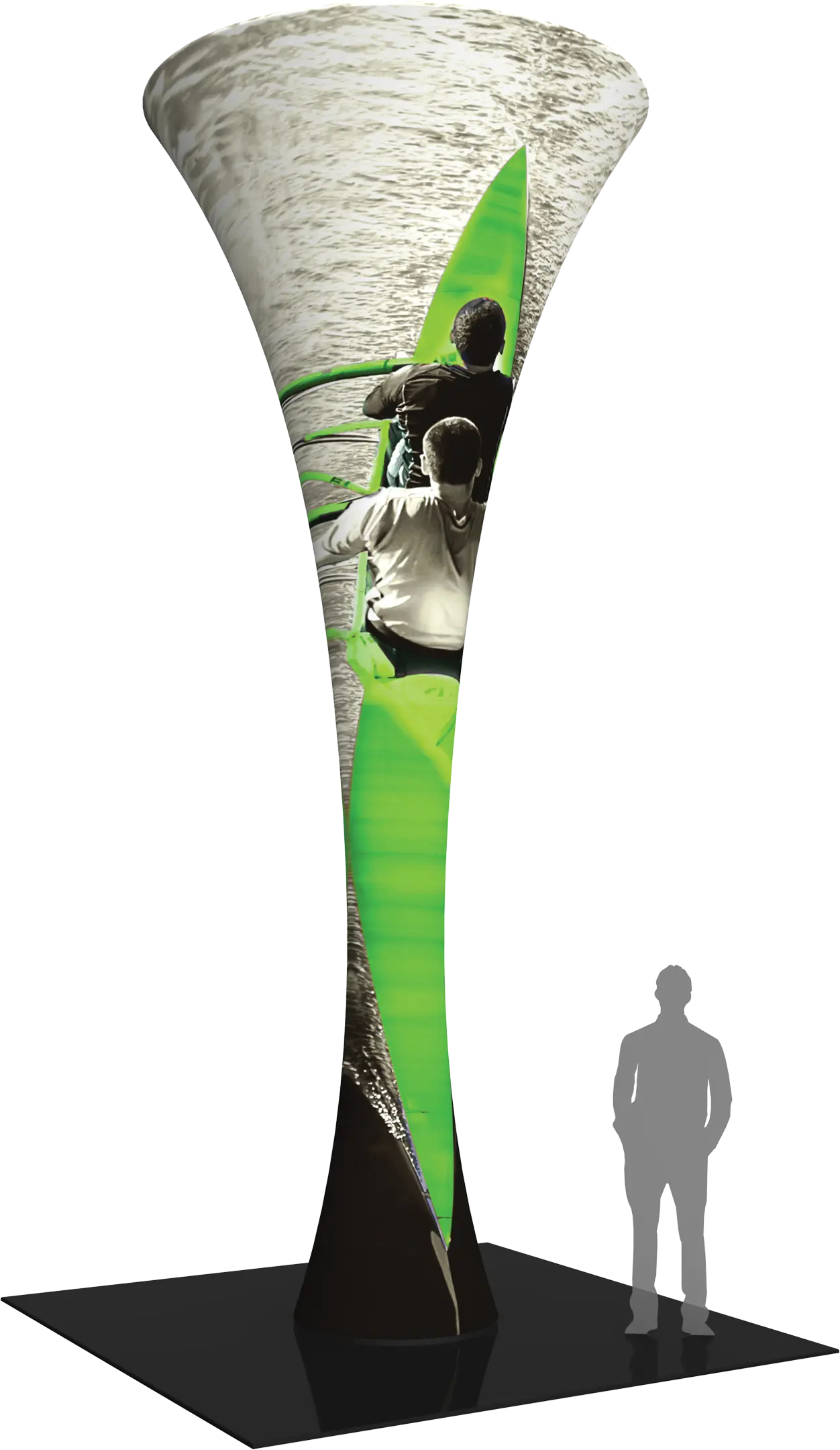

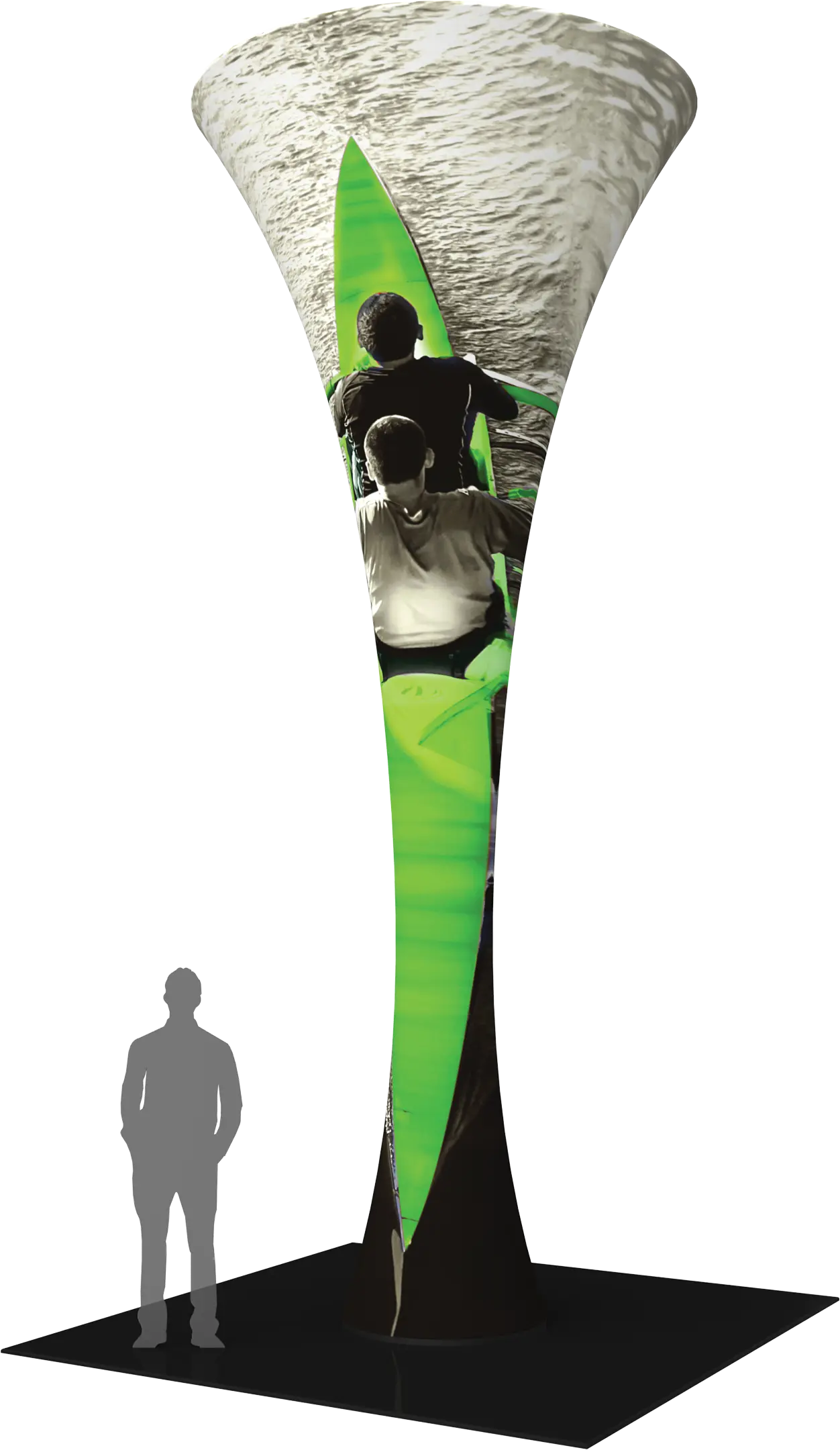

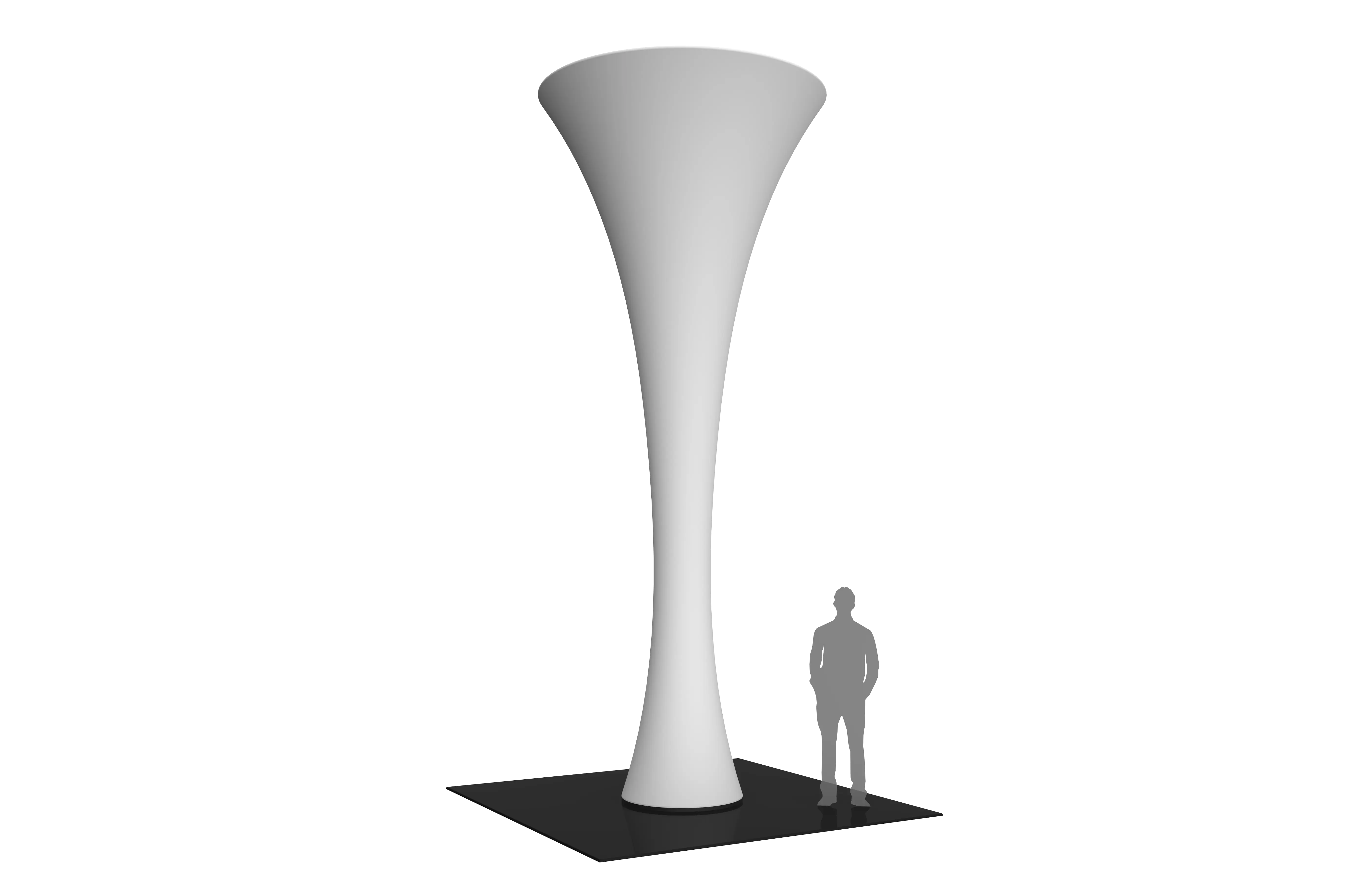

The 20ft Formulate® Fabric Funnel 01 can transform any environment through form, fabric and lighting. Formulate Funnel 01 measures 20ft tall, and features a heavy-duty wooden base and silver powder coated truss interior to create a dynamic, towering structure that commands attention. Fabric graphics feature a zipper at the top and a silicone edge at the bottom for easy assembly. Accent LED light kits are not included, but can be purchased a la carte to add a glow within the funnel. Funnel 01 packs down into two wheeled OCH2 cases for easy storage and transport.
- State-of-the-art 30mm curved aluminum tube frame with expanding spigots
- Easy to store and ship
- Quick to set up
- Kit includes: one frame, one dye-sublimated zipper pillowcase graphic, and two wheeled molded OCH2 storage cases (base packs separately)
- 42" diameter at base
| Graphic Width | 96.87" |
|---|---|
| Graphic Height | 246.92" |
| Assembled Dimensions | 98.5"W x 237"H x 98.5"D |
| Hardware Only Weight | 140 lbs |
| Graphics Only Weight | 32 lbs |
| Approximate Total Display Weight | 172 lbs |
| Shipping Dimensions | Ships in:2 x OCH2 (52"L x 29"H x 15"D)+ 1 SKID |
| Approximate Shipping Weight | 232 lbs |
Spec Sheets
IS_FUN-01.PDF
Graphic Templates
GT_FMLT-FUN-01.PDF
CAD Files
CAD_FUN-01.ZIP
